| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | MKS |
| إصدار الشهادات: | CE |
| رقم الموديل: | MT600 |
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | 2500 |
| وقت التسليم: | 7 |
| شروط الدفع: | L/C ، D/P ، T/T. |
| القدرة على العرض: | 7 |
| لون: | أبيض أو رمادي أو كطلب | حزام المثلث: | BX2600MM |
|---|---|---|---|
| مادة النصل: | CR12MOV | مخفض السرعة: | 100 نموذج |
| خدمة: | تصنيع المعدات الأصلية/تصنيع التصميم الشخصي |

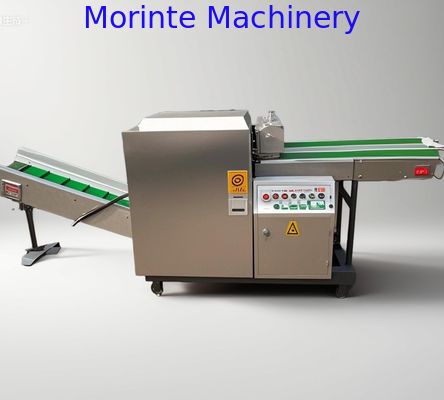

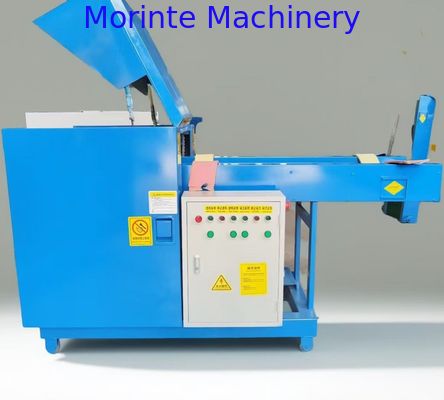

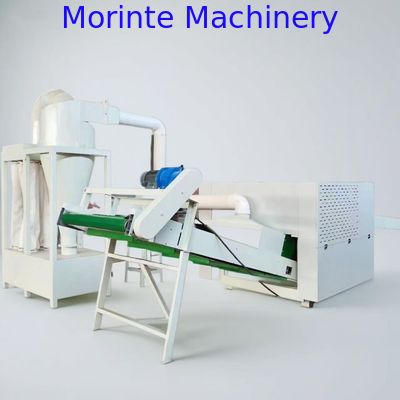

Old Clothes Cotton Waste Cutting Machine

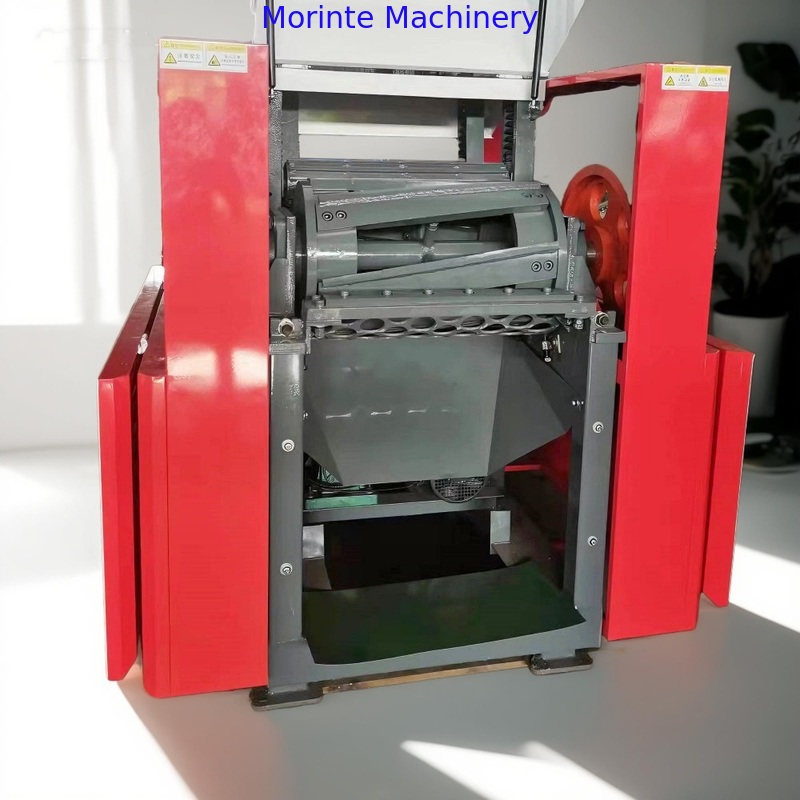

Our old clothes cutting machine can solve all the cutting problems for you involving soft materials such as fabrics, textiles and other waste materials of soft materials. Trust us, our machine will be your best choice. Our cutting machine adopts a rotating twisting blade, combined with the internationally leading inclined roller design, achieving continuous high-speed shearing of the movable blade and the fixed blade by point motion, just like a large pair of scissors. It is more energy-efficient, has a higher cutting efficiency than the conventional shredders on the market, has a larger capacity and is easier to maintain. The machine is equipped with a detachable screen to control the size of the output. The screen aperture can be customized according to your final output size requirements. You can choose the appropriate screen size as needed and install it, fully meeting your different cutting size requirements.
Basic Info.
| Model | 800MT | 1200MT | 1600MT | 2400MT |
| Capacity | 500–800 kg/h | 800–1200 kg/h | 1000–3000 kg/h | 3000–4000 kg/h |
| Main motor | 8P+7.5KW | 8P + 15 kW | 8P + 18.5 kW | 8P + 15 kW(Two sets) |
| Conveyer motor | 4p1.5kw | 4p2.2kw(variable frequency motor) | 4p3.0kw(variable frequency motor) | 14p4.0kw(variable frequency motor) |
| Belt wheel | Θ100 | Θ140 | Θ120 | Θ140 |
| Moving blade base | Θ300 | Θ400*600 | Θ500*800 | Θ600*1200 |
| Feeding conveyor | 1400*330 mm | 3000*520 mm | 3000*720 mm | 3000*1100 mm |
| Machine size | 2100*1000*1100 | 1400*1450*1500 | 1550*1700*1550 | 2100*1900*1550 |
| Cutting size | 2.5.8cm | tunable | tunable | tunable |
Waste fiber cutting machine is used to cut all kinds of fibers, such as chemical fiber, breast fiber, glass fiber, all kinds of textiles, old cloth and all kinds of waste yarn, cutting waste cloth, waste cloth, denim, waste clothes, sponge, glass fiber, chemical fiber, cloth, nylon cloth, PET fiber, fishing net, nylon net, PP rope, film, woven bags and other soft materials, etc. After cutting them into small pieces, they can be recycled. The tool adopts low speed large torque motor, the transmission process adopts cycloidal pin wheel reducer, speed regulation frequency conversion speed regulation, the operation and maintenance of each component is convenient. It has durable, stable and safe performance, which can improve production efficiency.
About us
Jinan Morinte Machinery Co., Ltd. has been engaged in the production and research and development of textile waste recycling machinery and equipment, our research and development products mainly include fiber cutting machine, textile waste baler, fiber opener, textile waste cleaning machine and so on. After the continuous efforts of our R & D team for 15 years, the textile waste recycling equipment produced by our company has been exported to all over the world, and has become a strong domestic textile waste recycling machinery manufacturer. In Pakistan, Bangladesh, Egypt and other countries our recycling lines have a large number of large textile mill users.
